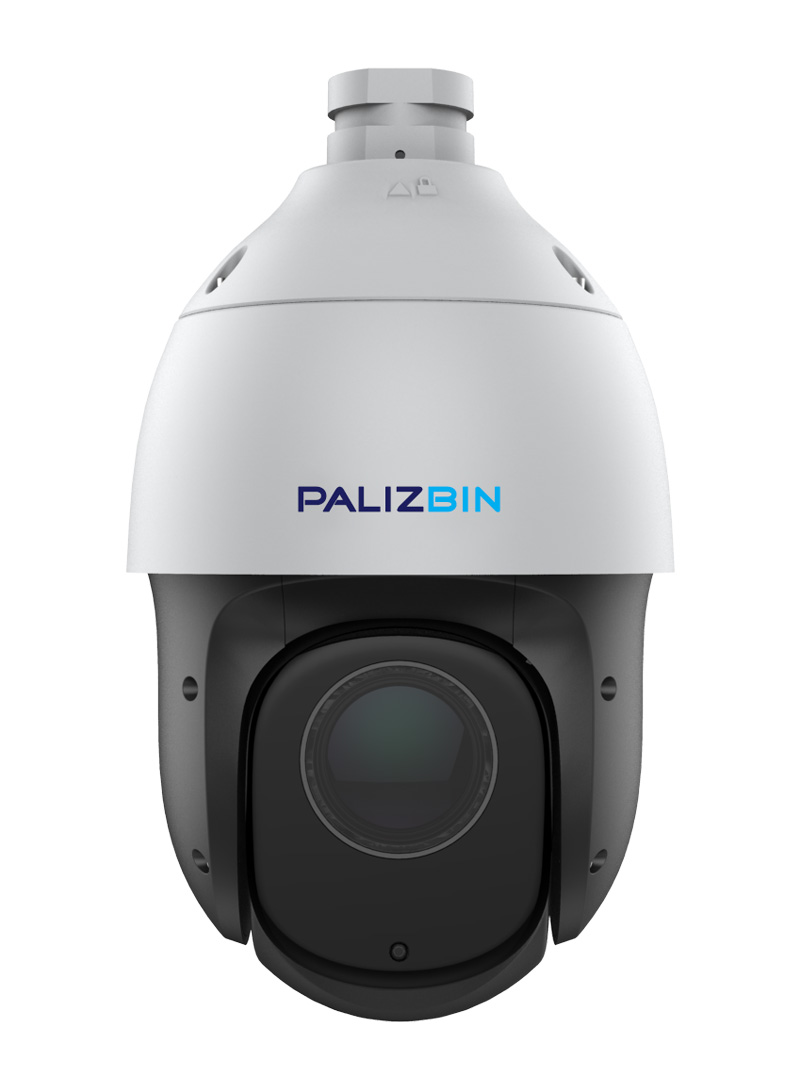

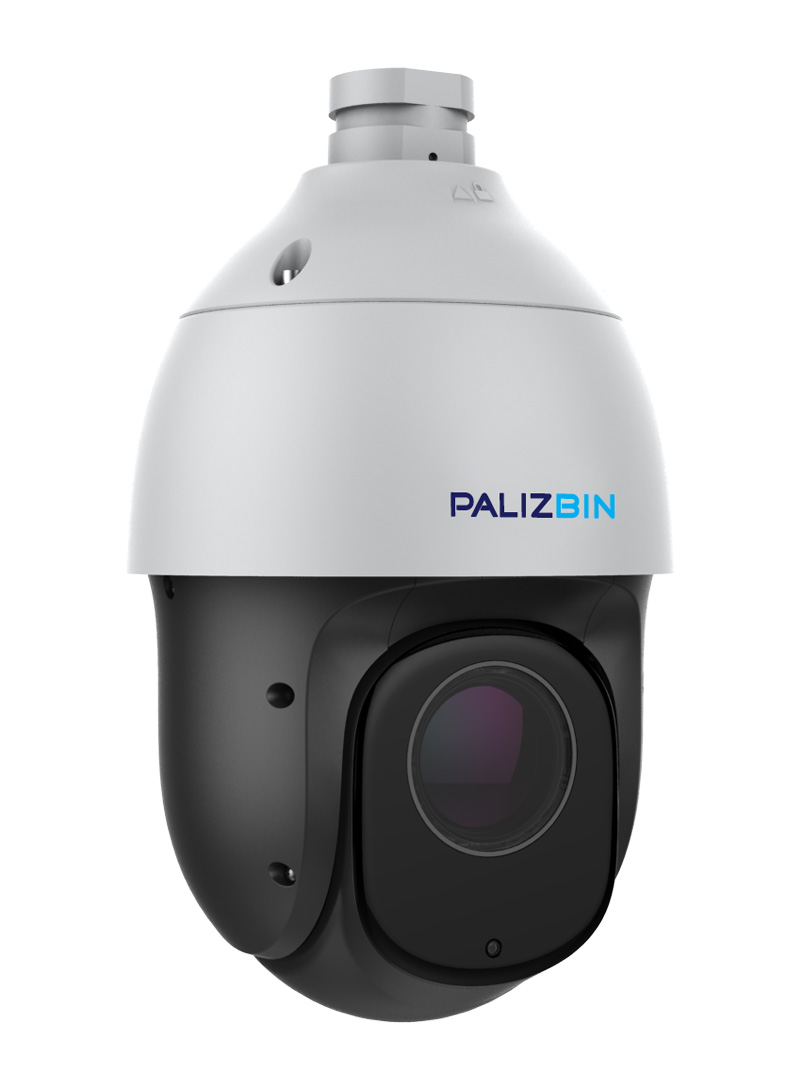

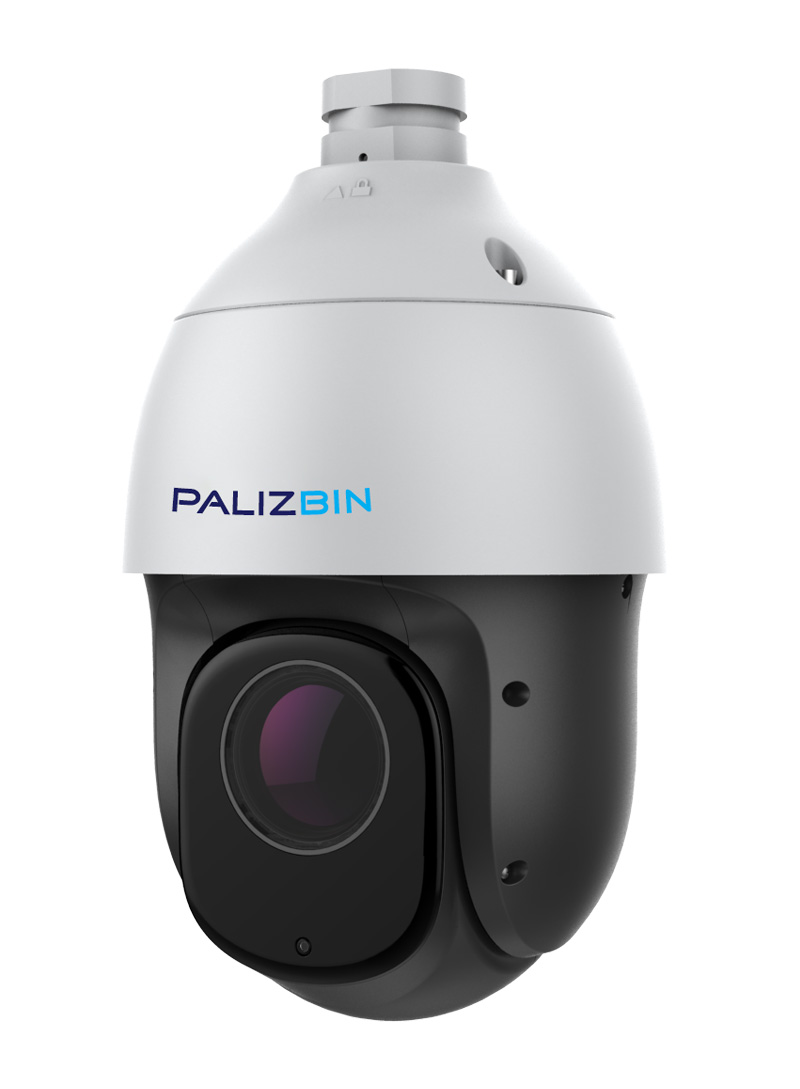

Palizbin PB-H445S PTZ IP Camera

  • The Palizbin PB-H445S PTZ IP camera is a professional solution in the category of PTZ (Pan-Tilt-Zoom) security cameras, also known as a Speed Dome camera, designed for accurate surveillance and wide-area monitoring. With its smooth pan and tilt rotation and powerful optical zoom, this camera provides full coverage of large environments without the need for multiple fixed cameras.
  • Equipped with a high-quality 4MP security camera resolution (2560×1440), the PB-H445S delivers sharper and more detailed images compared to standard Full HD models. This makes it an ideal choice for locations that require clear and professional video monitoring, such as industrial sites, organizations, commercial facilities, and urban security projects.
  • One of the most important features of this model is its strong 25X optical zoom camera capability, allowing users to monitor distant targets without losing image quality. This feature is extremely useful for supervising factory entrances, open areas, parking lots, warehouses, industrial zones, and large storage facilities. As a result, the Palizbin PB-H445S is an excellent option for customers looking for a reliable zoom surveillance camera with high performance.
  • The Palizbin PB-H445S is also equipped with advanced IR night vision 150m, providing clear images even in complete darkness. Therefore, if your project requires an outdoor night vision camera for open spaces or low-light environments, this model offers dependable and stable performance.
  • In addition, this smart surveillance camera features AI-powered intelligent functions and advanced video analytics. It supports key security capabilities such as Human/Vehicle Classification, Tripwire detection, Perimeter Intrusion detection, crowd detection, people counting, helmet detection, and even face detection camera functions. These smart features upgrade your system from basic recording to intelligent security monitoring.
  • The PB-H445S also includes Auto Tracking, meaning that when a person or vehicle moves within the monitored area, the camera can automatically track the target and keep it centered in the frame. This feature is highly valuable for sensitive security projects, building entrances, commercial centers, and restricted zones.
  • For storage and backup, this camera supports connection to an NVR system and video management software. It also includes a MicroSD card slot up to 512GB, enabling local recording without relying entirely on external storage devices. This feature ensures continuous recording even during network interruptions.
  • From an installation perspective, the Palizbin PB-H445S supports IEEE 802.3at PoE, making it a true PoE PTZ camera. This allows both power and data transmission through a single network cable, reducing wiring costs, simplifying installation, and improving project efficiency.
  • Built with a durable metal housing and IP66 protection, the PB-H445S is a reliable outdoor IP66 camera suitable for harsh weather conditions. It is resistant to rain, dust, and challenging environments. Furthermore, with an operating temperature range of -30°C to +65°C, this camera is suitable for both cold and hot climates.
  • Overall, the Palizbin PB-H445S is a high-performance PTZ IP camera with advanced zoom, intelligent features, and strong outdoor durability. It is an ideal choice for industrial facilities, organizations, and large-scale surveillance projects looking for a professional Speed Dome camera with powerful AI functions and superior image quality.
Image Sensor1/2.7"CMOS
Min IlluminationColor:0.001lux@ (F1.6,AGC ON),B/W:0lux with IR
Shutter Time1s~1/100000s
Day & NightIR-cut filter with auto switch (ICR)
Smart IRYes
WDR120dB
Focal Length4.8mm~120mm
Optical Zoom25X
Digital Zoom16X
Zoom Speed<5s
Aperture RangeF1.67~F3.67
Aperture TypeAuto(P-Iris)
Field of View58°~2.8°(H); 33.9°~1.7°(V); 64.8°~3.3°(D)
Focus ControlAuto/Semi-auto/Manual
Close Focus Distance500mm~5000mm
DORI Distance (Detect, Observe, Recognize, Identify)Detect:1980m, Observe:785m, Recognize:396m, Identify:198m
Pan Range0~360°(P)
Pan SpeedManual Speed:0.1°～200°/s --- Preset Speed:240°/s
Tilt Range-16°~90°(T) (Default -3°~90°(T))
Tilt SpeedManual Speed:0.1°～120°/s --- Preset:180°/s
3D PositionYes
Preset500
Cruise16 (up to 32 presets per cruise)
Scan8
Pattern8, each with 600s memory or 1000 orders
Scheduled TaskPreset, Cruise, Scan, Pattern
North PointYes (Manual setting)
Power-off MemoryYes
IR LEDs7
IR DistanceUp to 150m
Wavelength850nm
IR Irradiation AngleYes
Video CompressionS+265/ H.265/ H.264B/ H.264M/ H.264H/ Motion JPEG
Video Bit Rate32Kbps~16Mbps
Audio CompressionG.711A/ G.711U/ ADPCM_D/ AAC_LC
Audio Sampling Rate8kHz/32kHz/48kHz
Max Resolution4MP, 2560 × 1440 @30fps
Main StreamPAL:25fps(2560×1440,2304×1296,1920×1080,1280×720) NTSC:30fps(2560×1440,2304×1296,1920×1080,1280×720)
Sub StreamPAL:25fps(704×576,704×288,640×360,352×288) NTSC:30fps(704×480,704×240,640×360,352×240)
Third StreamPAL:25fps(704×576,704×288,352×288,640×480) NTSC:30fps(704×480,704×240,352×240,640×480)
BLC (Back Light)Yes
HLCYes
AGCYes
3D DNRYes
White BalanceAuto/ Semi-Auto/ Manual/ Sunshine/ Nature Light/ Warmlight Lamp/ Daylight Lamp/ Filament Lamp/ Lock White Balance
ROI7 rectangular 3D fixed focus areas,supporting 1 rectangular dynamic tracking ROI
OSD5 regions(Each region can have a maximum of 127 characters ,up to 5 lines); 16*16/24*24/32*32/48*48/64*64/96*96/adaptable size; Vector/Lattice
DefogYes
FlipNormal, Horizontal Mirror, Vertical Mirror, Inverted Flip
Regional ExposureYes
Regional FocusYes
DemistYes
Privacy Mask24 regions(Up to 4 blocks in the same scene)
General AlarmMotion Detection; Mask Alarm; Alarm Input
Exceptions AlarmVoltage Alarm; Disk Full; Disk R/W Error; Recording Exception; IP Address Conflict; MAC Address Conflict; FTP Server Exception ; Network cable disconnected
Linkage MethodSend Email; Trigger Sound; Trigger Recording; Trigger Capture; Notify Surveillance Center; Alarm Output
Video AnalyticsHuman/Vehicle Classification; Tripwire; Double Tripwire; Perimeter; Object Abandon; Object Missing; Heatmap; Loitering; Running; Parking; People Counting; Safety Helmet Detection; On Duty Detection; Video Abnormal; Audio Abnormal; Crowed Detection
Auto-TrackingYes
Face ModeFace Capture
Face Capture Performance60; 19; ≤60m; Detect up to 32 faces at the same scene; Capture up to 16 faces at the same scene; Capture rate ≥99%(continuous scene with 10 people or less); Gender 85%,age (±5) 85%,mask 90%,glasses 85%,beard 80% (Less than 10 people in view)
ANR - Automatic Network ReplenishmentYes
ProtocolsRTSP; RTMP; HTTP; HTTPS; TCP/IP; UDP; UPnP; ICMP; IGMP; SNMP v1\v2\v3; DHCP; DNS; DDNS; Easy DDNS; NTP; SMTP; TLS v1.2; SSL; 802.1x; QoS; IPv4; IPv6; PPPoE; SSH; Unicast; Multicast; ARP; RTP; SRTP; FTP; SFTP
System CompatibilityP2P; ONVIF(Profile S/T/G/M); SDK; CGI; RTSP; RTMP; HTTP PUSH
Remote Connection≤7
User/Host32users, Level 4:Admin/Browse/Browse+Control/Browse+Control+Set
Client SoftwareEasy7 VMS
Mobile ClientEasyLive Plus
Web SupportIE10+; Firefox52+; Edge89+; Safari11+; Chrome57+
Communication Interface1*RJ45 (10/100Base-T)
Audio I/O1*Input Impedance 1kΩ,2.0~2.4Vp-p; 1*Output Impedance 600Ω
Alarm I/O1*Switching; 1*Switching,Voltage≤DC24V,Current≤1A
Reset ButtonYes
On-board StorageSupport microSD/microSDHC/microSDXC card,up to 512GB
Web Client Language19 languages Simple Chinese, English, Traditional Chinese, Spanish, Italian, Korean, Turkish, Russian, Thai, Polish, French, Dutch, Hebraism, Vietnamese, Arabic, German, Ukrainian , Portuguese, and Albanian
Operating Temperature (Celsius)-30℃~65℃(-22℉~149℉)
Operating Humidity (%)≤95%RH
Storage Temperature-30℃~65℃(-22℉~149℉)
Storage Humidity10%~95%RH(non-condensing)
Power SupplyDC12V±10%; PoE:IEEE 802.3at
Power Consumption (W)11.5W(IR OFF) ; 20.5W(IR ON)
ProtectionSurge4000V; ESD6000V; IP66
MaterialMetal
Boundary Dimension (W) X (H) X (D) mm161(D)276(H)mm
Package Dimensions260(L)260(W)465(H)mm
Weight (g)3 kg
Camera TypeSpeed dome CCTV
